Vacuum Forming Mold Types

Choose the tool around the production job

Mold material affects more than the purchase price. It influences working-surface quality, dimensional behavior, heat transfer, cooling strategy, durability, repair, handling, lead time, and what the forming operation must do between cycles.

Start with the part, sheet material, forming temperature, machine, expected program, surface and tolerance requirements, and available schedule. Then compare tool constructions that can meet those conditions.

Wood, MDF, and tooling board

Fabricated wood and MDF can be useful for patterns, development work, teaching, prototypes, and limited forming where the temperature, finish, moisture exposure, and expected use allow it. Joints and sealed surfaces require attention, and repeated heat cycles can limit service.

Purpose-made tooling boards provide more controlled density and machining behavior than basic wood products. Available grades cover different temperature and surface requirements, so the board must be selected for its actual role—as a pattern, master, or forming tool.

Cast resin and tooling composites

Cast resins and composite tooling systems can provide a machinable or finishable surface at lower mass and different cost than metal. Their temperature capability, reinforcement, support structure, thermal behavior, repair method, and production life depend on the actual resin system and construction.

Fiberglass-reinforced tools can be successful when the laminate, working surface, support, and heat management fit the job. Calling a tool “fiberglass” alone does not describe enough of the construction to predict its performance.

Ceramic composite tooling

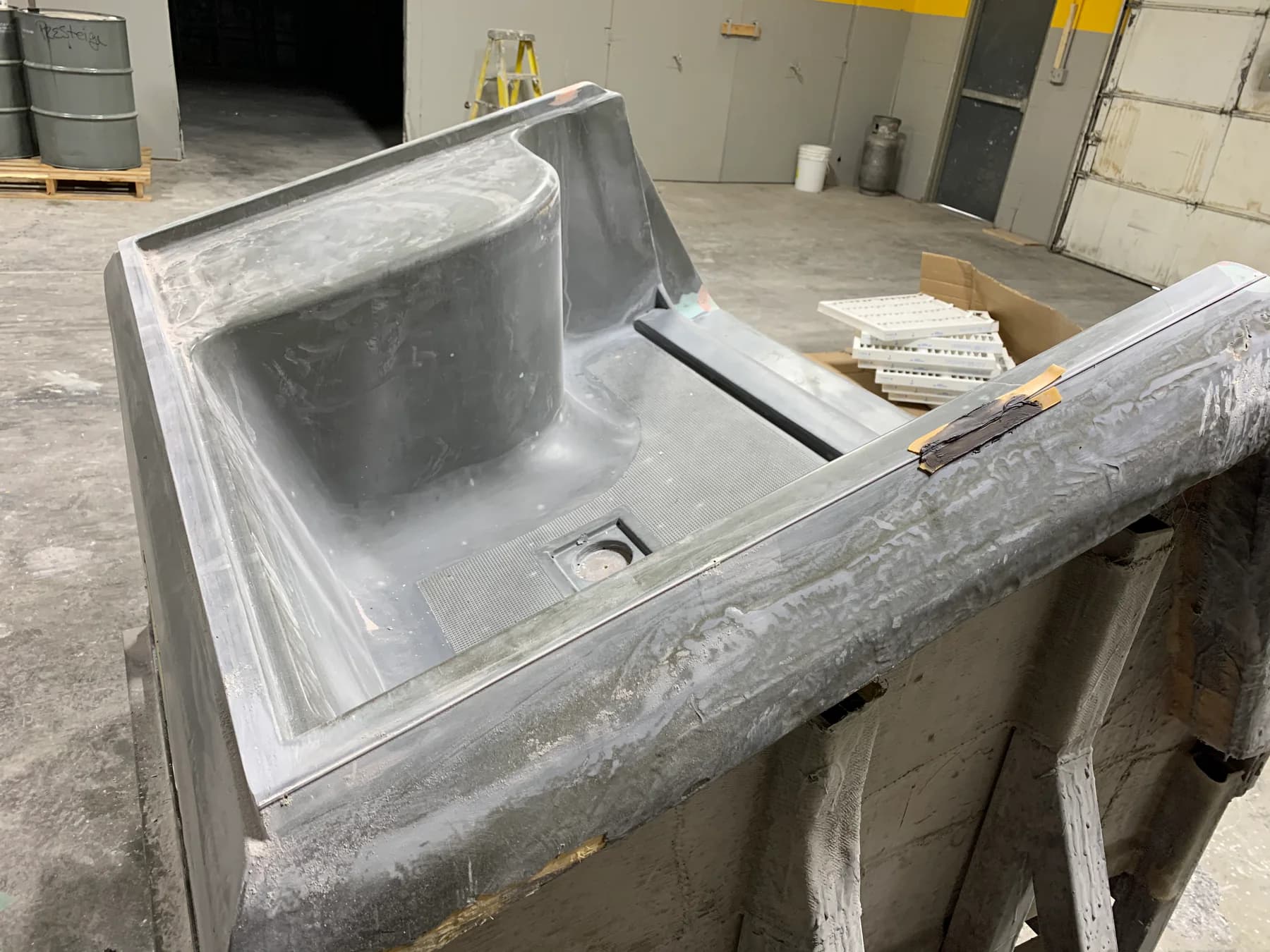

Ceramic composite is Prestige’s established construction for new heavy-gauge thermoforming molds. It offers a practical production-tooling route when the application fits its thermal behavior, working surface, construction, and cycle expectations.

It generally will not cycle as quickly as temperature-controlled aluminum. Cost, lead time, finish, and production life are application-specific and should be reviewed against the real geometry and forming process rather than reduced to a universal percentage or cycle claim.

Cast aluminum

Cast aluminum can produce a durable metal tool with useful thermal conductivity. The casting may require machining and finishing to reach final dimensions and surface requirements. Tool design can also incorporate vacuum passages, mounting, reinforcement, and temperature-control features appropriate to the forming operation.

CNC-machined aluminum

Machining aluminum from billet or plate can provide controlled geometry, detail, and a clear path to integrated features. Material, programming, machining time, finishing, and cooling strategy all contribute to the investment. It is a strong option for many production programs, but it is not automatically the right economic or operational answer for every part.
